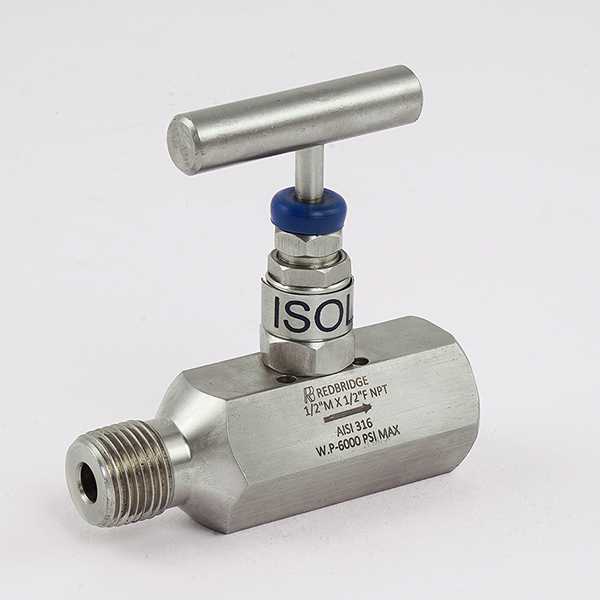

NEEDLE VALVE HEXAGON BODY - M x F
Category: Needle Valves
| Features |
• Compact design for Instrumentation
• Non Rotating Trim for long life and self centering • Bubble tight metal to Metal for positive shut off • Hand tight single isolation valve • Re adjustable packing method for long life • Dust cap to protect from external contamination • Metal back seat to avoid stem blow out during operation • Packing below thread to avoid lubricant washout • Capable to work in un clean condition • Supply to NACE MR-0175 / ISO15156, if required • NPT thread as per std ANSI B1.20.1 • Anti tamper key (Optional ) • Fire safe design option available as per STD BS 6755 Part 2 / ISO 10497 |
|---|---|
| Optional Connections |
NPT / BSPP / BSPT ( Male / Female )
Ferrule fitting end ( 1/4” to 1” OD Tube ) |
| NPS Size |
1/4 “ to 1”
|
| Materials |
SS 316/316L , A105 / 350LF2, MONEL, INCONEL, DUPLEX, SUPER DUPLEX, HASTELLOY, BRONZE
|
| Gland packing |
PTFE / GF PTFE / AED O RING / GRAPHITE
|
| Working Temperature |
-52°C to + 425°C (-61.6°F To +797°F)
|
| Working Pressure |
6000 PSI (414 Bar) / 10000 PSI (690 Bar)
|
| Testing |
100% Hydro testing performed as per Std
BS EN 12266-1 / API 598 |
| Certification |
EN10204 – 3.1 Certification as standard / 3.2 if required
|
