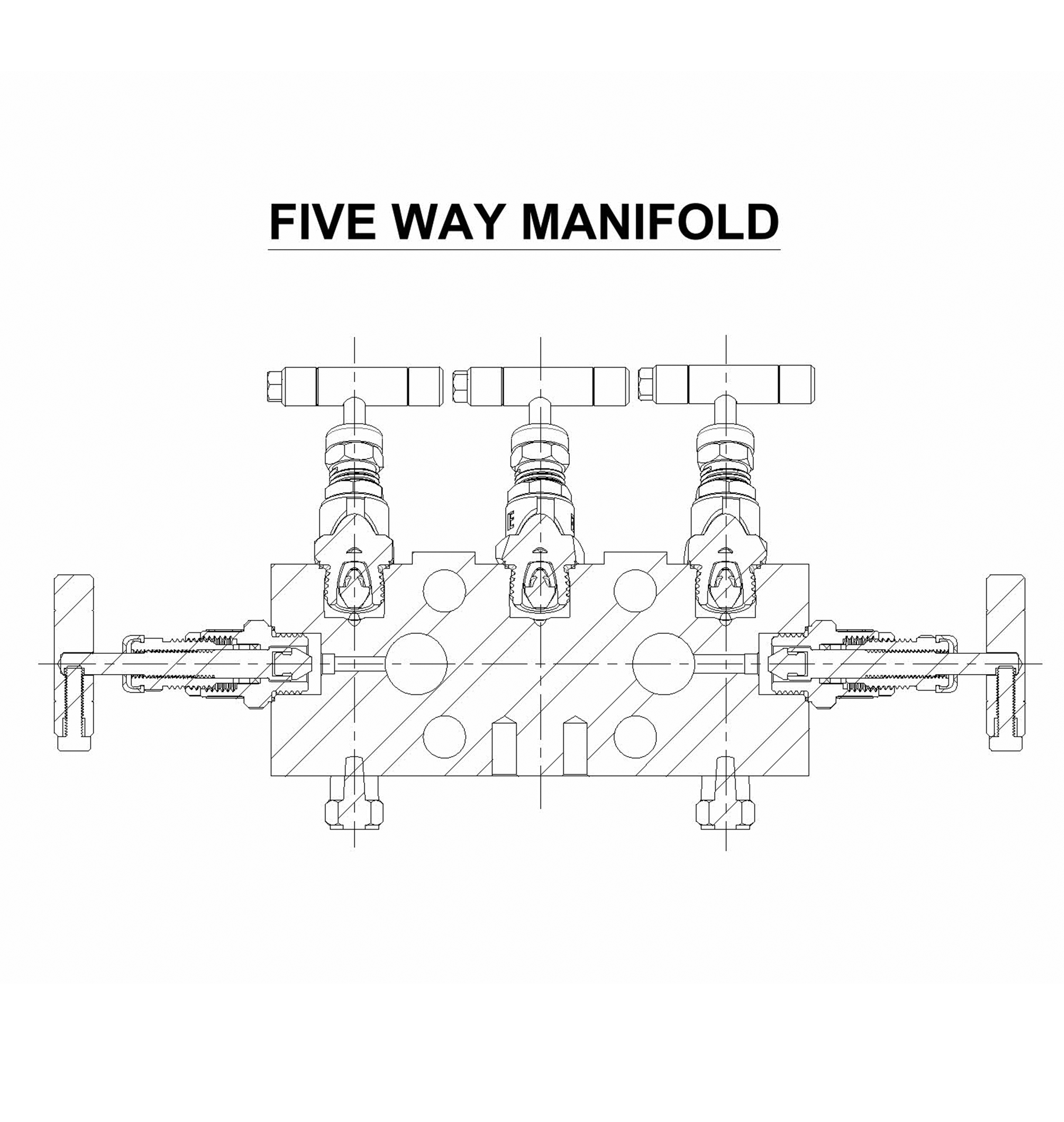

FIVE WAY DIRECT MOUNT MANIFOLD ( PIPE x FLANGE )
Category: Manifolds
| Features |
• Compact design for Instrumentation mounting
• Designed for Static pressure & Liquid level application • Suitable for mounting Pressure gauge & Transmitters • Non Rotating Trim for long life and self centering • Bubble tight metal to Metal for positive shut off • Hand tight single isolation valve • Re adjustable packing method for long life • Dust cap to protect from external contamination • Metal back seat to avoid stem blow out during operation • Packing below thread to avoid lubricant washout • Capable to work in un clean condition • Supply to NACE MR-0175 / ISO15156, if required • NPT thread as per std ANSI B1.20.1. • Anti tamper key (Optional ) • Fire safe design option available as per STD BS 6755 Part 2 / ISO 10497 |
|---|---|
| Optional Connections |
Size – ¼” to 1”
Inlet & Outlet – Screwed end ( NPT/BSPP/ BSPT ) Vent (Bleed) – ¼” as standard / 1/2” as optional Mounting hole : 2 X Φ 6.50 Holes (or) M8 Thread |
| Materials |
SS 316/316L , MONEL, INCONEL, DUPLEX, SUPER DUPLEX, HASTELLOY
|
| Gland packing |
PTFE / Filled PTFE / AED O RING / GRAPHITE
|
| Working Temperature |
-52°C To +425°C ( -61.6°F To +797°F)
|
| Working Pressure |
6000 PSI Max ( 414 Bar)
|
| Testing |
100% Hydro testing performed as per Std BS EN 12266-1 / API 598
|
| Vent |
1/4” or 1/2” Female NPT with Vent plug
|
| Certification |
EN10204 – 3.1 Certification as standard / 3.2 if required
|
