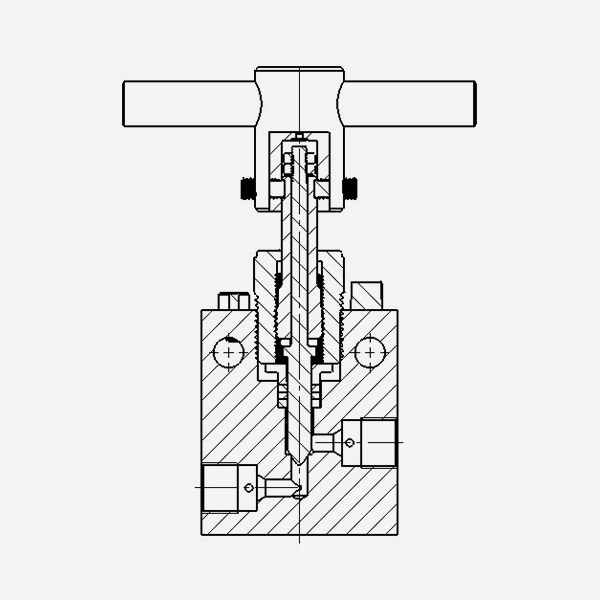

HIGH PRESSURE NEEDLE VALVE (20000 psi)
Category: High Pressure Valves
| Features |
• Compact design
• SS316L wetted parts & 17/4PH material provide better corrosive resistance • Non rotating stem design for self centring & avoid galling issue • Hardened stem material provides better shut -off • PTFE packing with PEEK gland provide positive leak free sealing • Packing below thread to avoid lubricant wash out • Re adjustable packing method for long life • Locking clamp avoid accidental removal of housing during operation • Supply to NACE MR 0175 / ISO 15156, if required • Panel mounting external hole provision provided • Safety weep hole for all pressure connection area |
|---|---|
| Optional Connections |
Tube OD Inch (mm) | Port thread Inch (mm) | Orifice size
1/4(6.35) | 7/16 - 20 | 0.106(2.70) 3/8(9.53) | 9/16 - 18 | 0.201(5.10) 9/16(14.3) | 13/16 - 16 | 0.31(7.9) 3/4(19.05) | 3/4 - 14 | 0.44(11.1) |
| Materials |
• All Wetted parts – SS 316 / SS316L
• Non rotating stem – 17/4 ph |
| Working Temperature |
- 40°C to 200°C ( -40°F to 392°F )
|
| Working Pressure |
20000 psi Max ( 1379 Bar Max)
|
| Testing |
100% Hydro testing using water
|
| Packing |
• PTFE
• PEEK – Lower gland |
| Certification |
EN10204 – 3.1 Certification will be provided if required
|
