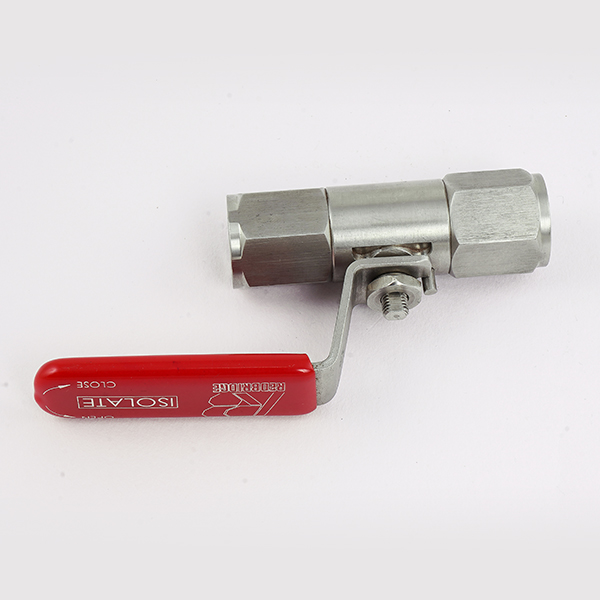

1/2" BALL VALVE ( ROUND BODY )
Category: Ball Valves
| Features |
• Bi-directional ball valve design
• Flexible Single / Two / Three piece design helps for easy maintenance • Low operating torque • Excellent flow • Anti blow out internally loaded stem • Available with various connections • Bore size is from 6mm to 76 mm • Supply to NACE-MR 0175 / ISO 15156, if required • NPT thread as per std ANSI B1.20.1 • Full bore / Reduced bore size as per ISO 17292 Standard • Firesafe design option available as per STD API 607 / ISO 10497 |
|---|---|
| Optional Connections |
Flanged end / Screwed end / Weld end / Ferrule ends
|
| NPS Size |
1/4 “ to 3” ( DN10 to DN80 )
|
| ANSI Pressure class |
150#,300#, 600#, 900#, 1500#, 2500#
|
| Materials |
SS 316/316L , A105 / 350LF2, MONEL, INCONEL, DUPLEX, SUPER DUPLEX, HASTELLOY, BRONZE
|
| Gland packing |
PTFE / RPTFE / GRAPHITE
|
| Seat |
PTFE / RPTFE / DEVLON / DELRIN / PVDF / PEEK / CF PTFE / METAL SEAT
|
| Working Temperature |
-29°C To +250°C ( -20.2°F To +482°F)
|
| Testing |
100% Hydro testing performed as per Std
BS EN 12266-1 / API 598 |
| Certification |
EN10204 – 3.1 Certification as standard / 3.2 if required
|
