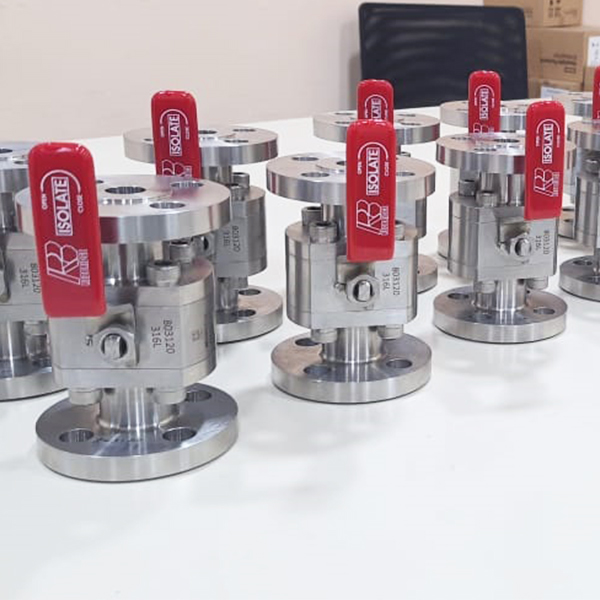

3/4" - 150#RF, 19MM BORE THREE PIECE DESIGN BALL VALVE WITH FLANGED ENDS

Category: Ball Valves
Features
• Bi-directional ball valve design
• Flexible Single / Two / Three piece design helps for easy maintenance
• Low operating torque
• Excellent flow
• Anti blow out internally loaded stem
• Available with various connections
• Bore size is from 6mm to 76 mm
• Supply to NACE-MR 0175 / ISO 15156, if required
• NPT thread as per std ANSI B1.20.1
• Full bore / Reduced bore size as per ISO 17292 Standard
• Firesafe design option available as per STD API 607 / ISO 10497
Optional Connections
Flanged end / Screwed end / Weld end / Ferrule ends
NPS Size
1/4 “ to 3” ( DN10 to DN80 )
ANSI Pressure class
150#,300#, 600#, 900#, 1500#, 2500#
Materials
SS 316/316L , A105 / 350LF2, MONEL, INCONEL, DUPLEX, SUPER DUPLEX, HASTELLOY, BRONZE
Gland packing
PTFE / RPTFE / GRAPHITE
Seat
PTFE / RPTFE / DEVLON / DELRIN / PVDF / PEEK / CF PTFE / METAL SEAT
Working Temperature
-29°C To +250°C ( -20.2°F To +482°F)
Testing
100% Hydro testing performed as per Std
BS EN 12266-1 / API 598
Certification
EN10204 – 3.1 Certification as standard / 3.2 if required
